Magic Grip BushingDownload PDFCatalogue No.: UT-PX TYRE COUPLING WITH MAGIC GRIP | Revision 00

Key Features

  • Highly Flexibile and resilient
  • Absorbs large Misalignment
  • Low torsional stiffness
  • Dampens shock & Vibration
  • Flexible element easily replaceable insitu
  • Ideally suitable for Diesel Engine Drives , Fans , Mills , Compressors ,Rolling Mills Pumps, conveyors , DG Sets.
  • Available for reputed makes of Diesel Engines and compressors.
  • Custom Design for special Reqirements
  • Torsional Vibration Calculation on rquest
  • No Lubrication . Minimum Maintenance
  • No expensive downtime.
  • Flexible element is made of Rubber reinfoced with Nylon Chords.
  • Available in Series PH, PX, TC & U
  • PH Series has largest range. These have flexible member firmly bolted to clamping elements. There is no possibility of Tyre slipping out even in case of imperfect installation.
  • Available for Maximum torques upto 420000 Nm Coupling Diameter upto 1250 mm.
  • Couplings with Brake Drum available.
  • Also available with magic Grip Bushing for Quick fitment & removal.

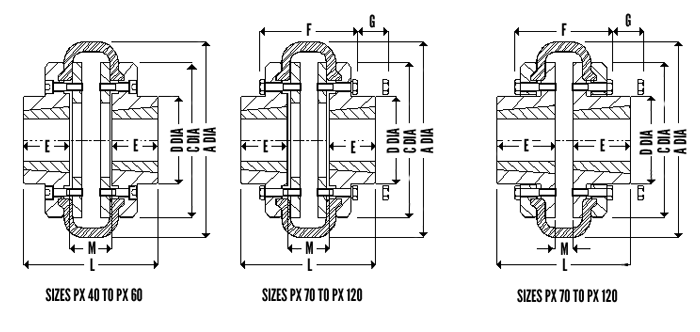

General Assembly Drawing

Series 80 CCS Diagram

Dimensions and Standard Sizes

Rating

KW rating at common RPMs

 Tor.Stiff

Max Misalignment
Size Max Speed

Torque

 KW/100 585 720 1440 2880 C Max Ang. Para-llel Axial
Cont Max
  RPM Nm Nm rpm deg mm Mn
PX40 4500 21 64 0.22 1.3 1.6 3.2 6.3 5 4 1.1 1.3
PX45 4500 37 110 0.39 2.3 2.8 5.6 11 9 4 1.2 1.5
PX50 4500 53 160 0.56 3.3 4 8 16 13 4 1.3 1.7
PX60 4000 106 318 1.11 6.5 8 16 32 26 4 1.6 2.6
PX70 3600 162 487 1.7 10 12 24 49 41 4 1.9 2.3
PX80 3100 253 759 2.65 15 19 38 76 63 4 2.1 2.6
PX85 3000 305 915 3.2 19 23 46 92 76 4 2.2 2.8
PX90 2880 365 1096 3.82 22 28 55 110 91 4 2.4 3
PX100 2600 505 1517 5.29 31 38 76   126 4 2.6 3.3
PX110 2300 712 2137 7.46 44 54 107   178 4 2.9 3.7
PX120 2050 1182 3547 12.4 73 89 178   296 4 3.2 4
PX140 1800 1881 5642 19.7 115 142 284   470 4 3.7 4.6
PX160 1600 3113 9339 32.6 191 235 338   778 4 4.2 5.3
PX180 1450 5485 16455 57.5 336 410 538   1371 4 4.8 6
Size Max Speed MG Bush A Dia C Dia D Dia E F G J L M Wt WR^2 Bolt T T
  RPM Nm Nm rpm deg mm Mn mm Mn
PX40 25 1008 104 82 - 22 - 43 29 66 22 1.6 0.001 15
PX45 28 1108 120 94 - 22 - 43 29 68 24 2 0.002 15
PX50 32 1210 133 100 79 25 - 43 38 75 25 2.4 0.003 15
PX60 42 1610 165 125 103 25 - 43 38 83 33 4 0.01 15
PX70 42 1610 197 144 82 25 101 10 38 90 40 6.2 0.018 24
PX80 50 2012 211 167 95 32 106 10 42 107 43 9.6 0.037 24
PX85 50 2012 222 179 103 32 106 13 42 108 44 11.5 0.05 32
PX90 60 2517 235 188 110 45 119 13 48 136 46 14 0.064 32
PX100 60 2517 254 216 124 45 123 13 48 138 48 20 0.12 32
PX110 75 3020 279 233 140 51 127 14 48 152 50 26 0.16 32
PX120 75 3020 314 264 152 51 140 14 55 151 49 32 0.343 35
PX140 90 3535 359 311 195 89 152 14 67 211 24 54 0.695 35
PX160 100 4040 395 345 200 102 160 16 80 244 30 82 1.22 90
PX180 110 4545 470 398 220 114 190 16 90 282 46 126 2.01 90
