Series 80 SN & Series 80 SF Download PDFCatalogue No.: UT-80SN-SF | Revision 00

Floating Shafts are available in fixed Length as well as adjustible Lengths with Shrink Disc/ Splines. Hollow tubes are used to fabricate shafts. Shafts are light weight and require very little maintenance. Lubrication is required only for intermediate bearings.

Tube Size is selected to ensure operation well away from critical whirling speed.

  • For Floating Shaft Type SN, span is centre of Disc pack to cr of disc pack
  • For semifloating shaft type SF, span is bearing centre to cr of disc pack

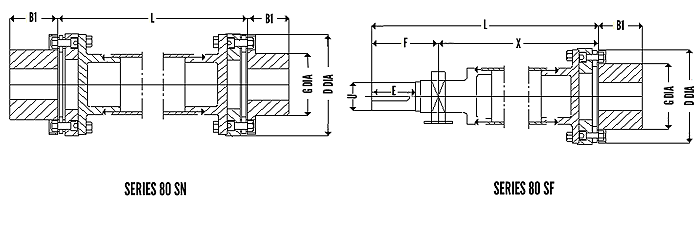

General Assembly Drawing

Series 80 SN Diagram

Dimensions and Standard Sizes

Size Nominal HP/100 Rating Torque Peak Torque Max Speed Max Bore E, Hub Length D Dia
  RPM NM NM RPM MM MM MM
65 0.45 32 64 24 66 34 28
80 0.90 64 128 28 75 40 30
100 1.80 128 256 32 87 46 32
125 2.60 185 370 42 102 59 41
150 4.00 285 570 42 105 62 45
162 7.00 500 1000 48 115 71 48
180 9.00 640 1280 55 130 78 55
200 12.00 855 1710 55 143 84 54
220 15.00 1070 2140 65 143 93 62
225 18.00 1282 2562 65 148 93 67
250 25.00 1780 3560 80 173 114 76
262 33.00 2350 4700 80 173 114 76
300 56.00 3990 7980 90 203 128 86
312 56.00 3990 7980 100 203 140 86
350 70.00 4990 9980 105 227 150 95
375 100.00 7125 14250 115 252 170 102
425 140.00 9975 19950 120 273 178 108
450 170.00 12110 24220 135 293 194 114
500 270.00 19230 38460 155 333 226 127
550 400.00 28500 57000 180 373 256 148
600 500.00 35625 71250 190 412 276 153
700 800.00 57000 114000 220 470 318 178
750 1100.00 78375 156750 220 510 321 191
800 1600.00 114000 228000 240 553 349 210

Engineering Data

Size Mass Inertia
MR^2
Maximum
Misalignment
Torsional
Stiff
Axial Spring
Rate
Bolt Tight Torque
      AXIAL RADIAL
  KG KG.M^2 MM MM MNM/Rad N/MM # NM ## MM
65 1.5 0.001 1.0 0.6 0.017 25 6 6
80 2.1 0.002 1.2 0.6 0.031 30 10 6
100 3.0 0.003 2.0 0.6 0.044 50 24 10
125 4.7 0.007 2.0 0.8 0.080 60 24 24
150 4.8 0.006 1.3 0.8 0.130 150 24 24
162 6.6 0.011 1.3 1.2 0.210 100 24 24
180 9.2 0.020 1.5 1.2 0.270 130 48 48
200 11.0 0.030 1.8 1.2 0.370 165 48 48
220 13.5 0.043 2.0 1.2 0.470 130 48 48
225 14.5 0.044 1.4 1.2 0.600 275 48 48
250 20.0 0.082 2.2 1.2 0.800 195 48 48
262 20.0 0.082 1.5 1.2 1.100 350 48 48
300 34.0 0.190 3.0 1.2 1.400 370 200 80
312 30.0 0.170 1.9 1.2 1.500 415 80 80
350 42.0 0.300 2.0 1.2 2.800 500 200 200
375 55.0 0.470 2.3 1.5 3.700 540 200 200
425 75.0 0.770 2.5 1.5 5.800 725 400 400
450 97.0 1.150 2.8 1.7 6.600 755 400 400
500 122.0 1.950 3.0 1.9 11.000 920 400 400
550 155.0 3.000 3.2 2.1 16.900 920 540 540
600 205.0 4.900 3.7 2.1 19.000 900 700 700
700 314.0 9.800 4.1 2.4 39.000 1230 1400 1400
750 395.0 14.200 4.6 2.4 ON REQ 1480 1800 1400
800 580.0 26.000 5.0 2.6 ON REQ ON REQ 2400 1400
Mass, Inertia,Stiffness are at max bore with standard dimension C listed above. Other C Dimension C dimension are available as required on request .Hub dimensions can be modified to suit special needs. Max angular misalignment 0.50 Deg /Pack .Misalignment limits are for speeds upto 3000 RPM. For higher Speeds consult us. Bolt Tightening Torques - # for Disc Pack Bolts, ## for Hub Bolts .
