Torque ratings are determined after extensive tests and have large service factor against rupture. Rupture torque is typically 6 to 10 times rated torque. At nominal torque torsional angle is large - typically 10 to 15 degrees. Torsional Stiffness is low. This results in low critical speeds , usually below operating speed. Further torsional stiffness varies with load. At lower loads stiffness is lower. The Feature allows operation at wide range of speeds.Favourable damping charactistics ensure vibration amplitude are limited at resonance.

Design Series - Series 1000 , Series 1100 are for Direct Flywheel mounting. Series 1750 are for shaft to shaft connection. Series IP are suitable for diesel drives in association with cardan shaft - highly popular for Diesel driven vertical Turbine Fire Pumps.

Selection

  1. First selection is based on nominal torque , Max bore , Max speed , end fitment.
  2. Next for Diesel / Compressor drives in particular - TV analysis is performed to check that vibratory torques are within acceptable limits in operating speed range. If necessary several sizes are tested - to obtain best match
  3. Unique" would be glad to perform TV analysis on request. For this normally we would require Mass elastic data , Torque - Crank angle data ( for compressors)

General Assembly Drawing

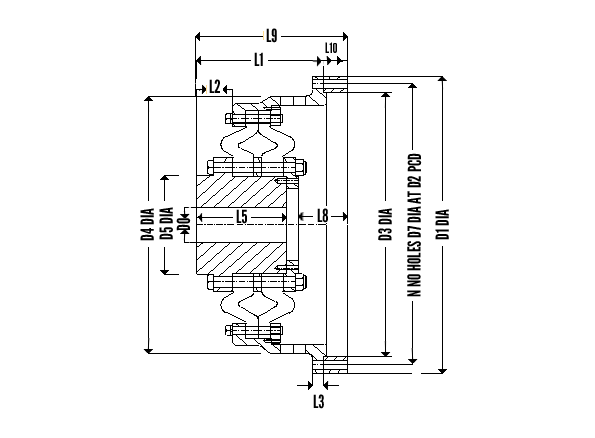

Series 80 CC Diagram

Dimensions and Standard Sizes

Max Speed

Dimensions

Size CI CS L1 L2 L3 L5 L8 L9 79 D1 D2 D3
VEZ RPM RPM mm mm mm mm mm mm mm mm mm mm
'35S,40S 4600 6700 71 16 8 52 37 98 3 221 205 189
43S,45S 4000 5870 83 21 8 62 38 110 3 252 235 218
51S,55S 3400 5500 92 23 10 69 38 119 3 290 268 246
60S 3400 5100 92 23 10 69 38 119 3 290 268 246
61S,65S 2850 4480 106 26 12 80 50 143 3 330 304 276
70S 2850 4480 106 26 12 80 50 143 3 335 308 283
71S,80S 2500 3890 132 36 14 103 43 162 3 380 354 328
82S 2500 3890 107 35 15 98 43 157 3 370 350 320
85S 2160 3330 108 42 15 110 48 177 3 400 370 340
86S,95S 2160 3330 162 47 14 126 48 193 4 445 420 392
102S,115S 1880 2880 185 52 16 143 58 223 4 514 486 458
121S,135S 1620 2500 216 66 18 168 67 261 5 593 561 529
141S,165S 1370 2150 254 75 23 199 75 304 5 690 650 610
171S,195S 1160 1840 283 82 25 222 93 349 6 808 767 726
201S,235S 980 1540 331 100 28 258 110 408 8 956 908 858
241S,275S   1340 388 116 32 302 138 488 8 1110 1051 992
280S,285S   1170 476 116 34 358 197 605 8 1262 1195 1128
310S,320S   1080 520 131 40 400 225 680 10 1386 1315 1244
360S   1080 520 131 40 400 225 680 10 1386 1315 1244

Table Continue

D0 MAX



Inertia MR^2

Cl Steel N D7 Weight Inner Outer
mm mm mm mm kg Kg.m^2 Kg.m^2
35 35 12 10 8 0.002 0.047
45 50 12 10 10.9 0.006 0.078
50 55 12 11 14.9 0.011 0.15
60 65 12 11 15.9 0.022 0.15
60 65 12 15 24.2 0.022 0.291
70 75 12 15 25.5 0.039 0.299
70 75 12 15 35.5 0.052 0.527
70 75 12 11 35.5 0.055 0.527
90 100 12 10.5 57.7 0.098 1.036
90 100 12 15 57.7 0.172 1.036
105 120 16 17 104 0.324 2.188
120 135 16 17 138 0.736 4.179
140 160 16 22 211 1.39 9.143
170 190 16 26 366 3.34 22.88
200 230 16 32 594 7.55 52.3
  280 16 35 950 17.0 112.6
  310 16 35 1640 36.5 255
  330 24 38 2074 52.9 418
  330 24 38 2074 52.9 418
