1140-2000Download PDFCatalogue No.: UT-CS1140-2000 | Revision 00

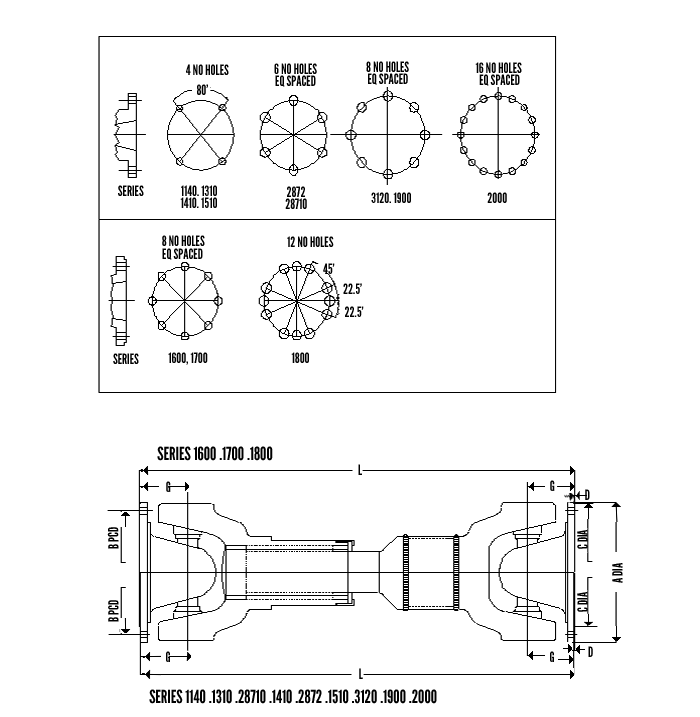

General Assembly Drawing

Series 80 CC Diagram

Dimensions and Standard Sizes

Bolts

Series Max Torque
Short Duration
A Flange Dia B PCD Dia*no Max Joint Angle C Spigot Dia D Spigot Height G Flange Face to Jt Cr I FL TH P Total Telescopic Movement Bolt Tight Torque
  mm NM mm mm degree mm NM mm mm mm mm
1140 571 87.3 69.8 M8*4 20 56.1 1.6 28.6 5.1 46 20
1310 800 96.8 79.4 3/8"*4 20 60.3 1.6 41.3 6.7 46 40
28710 1350 100 84 M8*6 18 56.9 2 48 7.8 45 20
28710-100DIN 1350 100 101.5 M8*8 18 57 -2.5 48 7.8 45 20
1410M 2100 * 95.2 7/16"*4 20 69.85 1.2 42.9 7.5 57 64
2872 2400 120 101.4 M10*6 20 82.5 2 54 7.8 60 48
2872-120DIN 2500 120 101.5 M10*8 20 90 -3
1510 3200 146 120.6 1/2"*4 20 95.2 1.6 63.5 9.1 51 100
3120 4000 129 111.5 M10*8 20 82.5 2 76 8 60 48
3120-120DIN 4000 120 101.5 M10*8 20 75 -2.5 76 8 60 48
3120-150 DIN 4000 150 130 M12*8 20 90 -3 76 8 60 80
1610 4500 174.6 155.5 3/8"*8 20 168.28 1.6 69.9 9.5 70 40
1700 6500 203.2 184.1 3/8"*8 35 196.85 1.6 85.7 9.5 75 40
1800 9260 203.2 184.1 7/16"*12 20 196.85 1.6 85.7 11.1 82 64
1900 16700 276.2 247.6 M16*8 20 222.25 2.4 98.4 14.3 82 210
2000 26000 287.3 263.5 1/2"*16 15 196.8 2.4 95.2 14.3 76 100

* 1410M Series - Rectangular Flange , Swing Dia ~ 123 mm Notes L Length can be as required The dimensions are for standard execution and subject to change without notice. Additional information about ratings and guidelines are given separately. Cardan shaft are also available in many other styles/assemblies. Some illustrations for alternative assemblies are given seperately

Nominal HP Ratings at various speeds at Service factor = 1.0

Series 1140 1310 28710 1410 2872 1510 3120 1600 1700 1800 1900
10 rpm 0.8 1.1 1.9 3 3.4 4.5 5.3 6.3 9.1 13 23.4
50 rpm 3.3 4.6 7.5 11 14 16.5 19.5 24 38 54 95
100 rpm 5 7.2 12.1 18 22.5 26.5 32 41 63 85 160
250 rpm 9 13 23.5 33 43 50 58 75 115 155 300
500 rpm 14 20.5 38 53 68 73 92 120 170 250 460
750 rpm 19 28 50 70 90 102 123 155 285 335 600
1000 rpm 22 33 62 85 110 122 150 190 380 400 735
1500 rpm 29 43 84 110 145 160 192 250 430 530 980
1800 rpm 48 48 95 125 160 180 220 285 450 600 1100
2000 rpm 35 51 100 132 175 195 235 300 450 620 1180
3000 rpm 45 66 128 175 230 255 310 400 600 830 1500
Series 80 CC Diagram

Dimensions and Standard Sizes

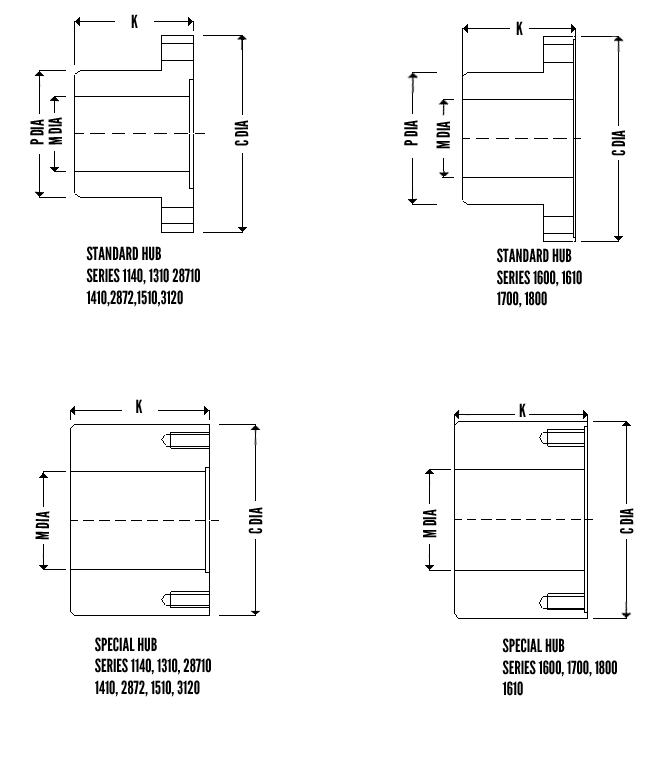

Standard Hubs

Series C M Max Bore K P
  mm NM mm mm
1140 87 32 45 57
1310 97 42 51 62
28710 100 48 50 69
1410 116 48 51 73
2872 120 55 55 80
1510 146 62 76 95
3120 130 65 75 90
1600,1610 175 80 89 120
1700 203 100 100 155
1800 203 100 100 155

Special Hubs

Series C M Max Bore K
  mm NM mm
1140 87 55 50
1310 97 60 63
28710 100 70 75
1410 116 70 76
2872 120 80 80
1510 146 95 100
3120 130 85 75
1600,1610 175 114 127
1700 203 140 152
1800 203 140 152

Dimensions and Standard Sizes

Weight & MR^2 data for Cardan shaft Series 1140 to 1900

Cardan Shaft Series Weight 1000 mm Length Kg MR^2 1000 mm Length KgM^2 Change Weight per 100 mm Kg Change Mr^2 per 100 mm Kg.m^2
1140 7.2 0.0046 0.5 0.0005
1310 8.5 0.0067 0.5 0.0005
28710 10.5 0.0108 0.6 0.0005
1410 11.9 0.0134 0.6 0.0007
2872 16.2 0.0196 0.6 0.0007
1510 18.5 0.0331 0.6 0.0012
3120 25.0 0.0400 0.6 0.0012
1600,1610 27.6 0.0707 0.6 0.0012
1700 36.8 0.1277 1.0 0.0020
1800 55.8 0.1935 1.0 0.0020
1900 87.8 0.5630 1.4 0.0045
